B. Braun SpaceCom
SpaceCom ist die EDV Schnittstellenkarte des SpaceSystems und verbindet damit bis zu 24 Pumpen mit der IT-Außenwelt. Damit wird die vollautomatische Therapiedokumentation z.B. in einem Patienten Daten Management System (PDMS) oder dem Narkoseprotokoll ohne Mehraufwand für die Pflege möglich.
Auf der Schnittstellenkarte steht ein web-Server zur Verfügung, der z.B. von der hauseigenen Medizintechnik für einen Fernzugriff genutzt werden kann.

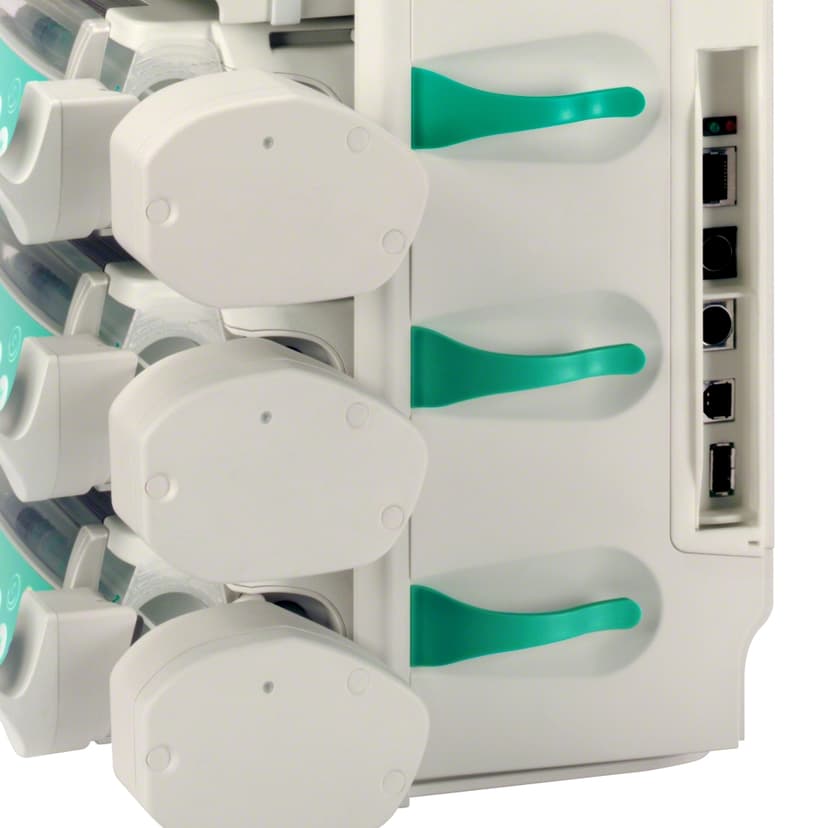

Die SpaceCom unterstützt nahezu alle gängigen Standards: Ethernet Netzwerk (RJ45), Seriell RS232, PS/2 für Barcodescanner und USB. Sie kann sogar mit einer Funknetzwerkkarte ausgerüstet werden, die für den Transport optional über einen Akku versorgt wird.
Die Schnittstellenkarte wird in eine SpaceStation des bettseitigen Ordnungssystems eingesetzt, wobei der Turm mit einem SpaceCover Comfort ausgerüstet sein muss.
