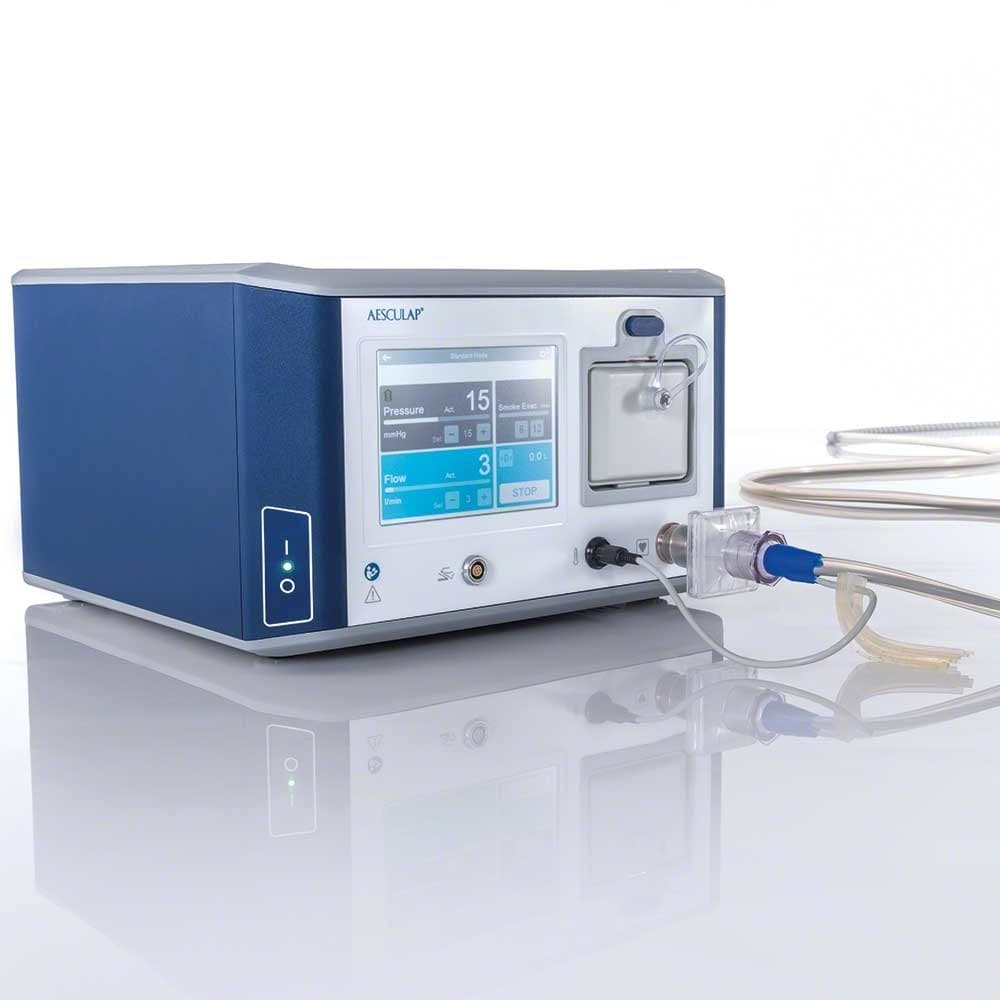

Der Flow50 Insufflator mit einer Flussleistung von 50 Litern ist vielseitig einsetzbar und kann aufgrund seiner unterschiedlichen Anwendungsmodi in der Viszeralchirurgie, Adipositaschirurgie, Pediatrie, endoskopisch assisitierten Herzchirurgie und zur endoskopischen Venenentnahme eingesetzt werden. Der Insufflator verfügt über ein 5.7'' Touchscreen mit intuitivem Bedienkonzept und bietet neben der integrierten Rauchgasabsaugung noch die Option der Gaserwärmung.
Konfiguration
- 5,7'' Touchscreen mit intuitivem Bedienkonzept
- Multimode für verschiedene Indikationen
- max. Gasflussleistung 50l/min
- Solldruckeinstellung 1 -30 mmHg
- Infozeile für Gerätemeldungen im Display
- automatisches Gasablasssystem
- Gaserwärmung auf Körpertemperatur
- integrierte Rauchgasabsaugung
- Füllstandanzeige bei Gasflaschenbetrieb
- benutzerdefinierte Profile speicherbar
- Gerätesteuerung über OP-Integrationssystem (Maquet TEGRIS)
- Gasanschluss US
- USB Serviceschnittstelle
- Abmessung B x H x T: 330 x 200 x 330 mm
- Klassifikation: Typ CF, IP21, IIb
- Spannungsversorgung: 100-240 V, 50/60 Hz
Vorteile
- einfaches und intuitives Bedienkonzept
- großer Touchscreen für mehr Übersicht
- schnelle Insufflation mit bis zu 50 l/min
- keine Geruchsbelästigung und Gesundheitsgefährdung durch chirurgische Rauchgase
- optimale intraoperative Sichtverhältnisse durch Rauchgasabsaugung
- zentrale Steuerung von Geräteparameter durch OP Integration
Indikation
- Viszeralchirurgie, Adipositaschirurgie, Pediatire,
- endoskopisch assistierten Herzchirurgie,
- endoskopischen Venenentnahme
