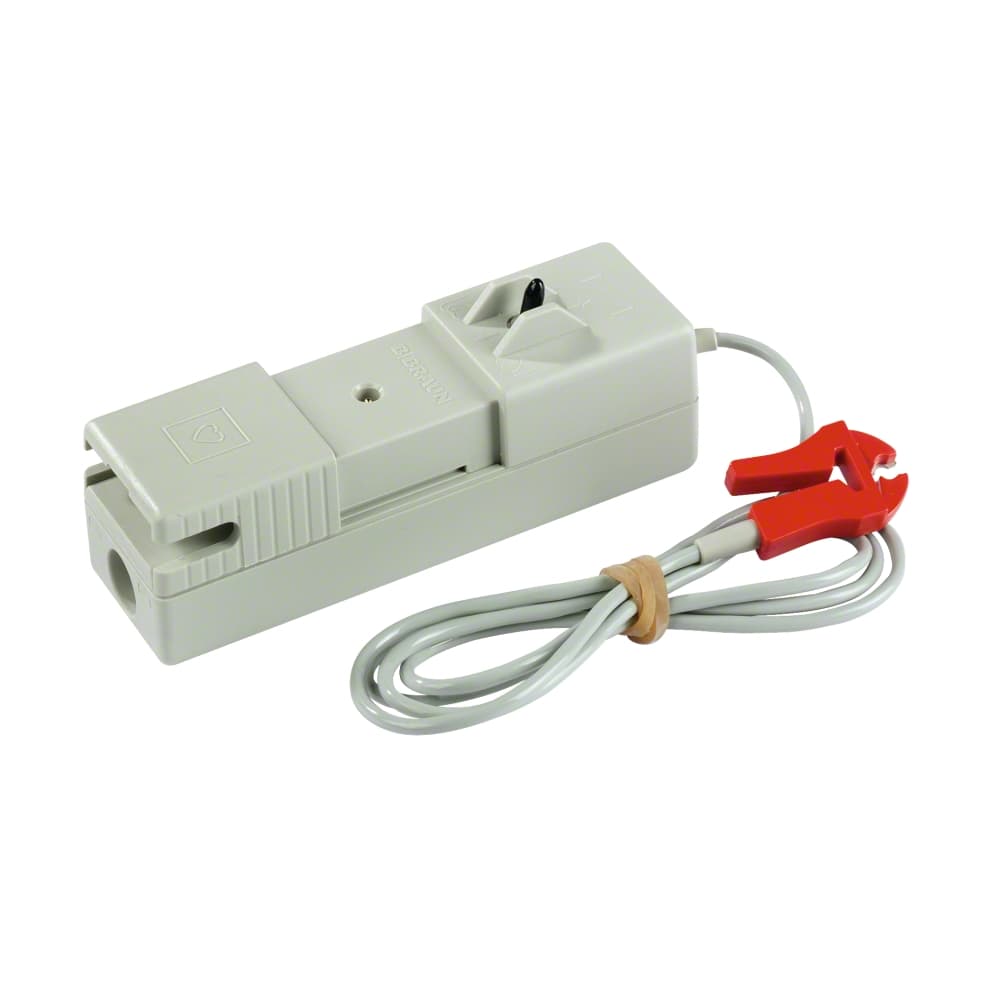

Adaptateur universel pour la dérivation intra-artérielle de l’ECG
L’adaptateur universel Certodyn® est un dispositif de commutation permettant la mise en place d’un cathéter guidé par ECG sur la base de signaux ECG (onde P = ; position intravasculaire, pic P élevé = ; position intra-auriculaire) avec un moniteur ECG.
Matériaux : pas de contact avec le corps
Raccords : Prise pour câble de raccordement pour fil ECG Adaptateur à bouton-poussoir/ adaptateur à clip Pince à électrode
