- Disponible en versions étroites et larges
- Conception modulaire
- Gestion pratique des câbles sur le panneau arrière
- Solution pour les exigences cliniques individuelles
- Utilisation interdisciplinaire
- Isoler les transformateurs en tant que dispositifs de sécurité efficaces
- Vaste gamme d’accessoires

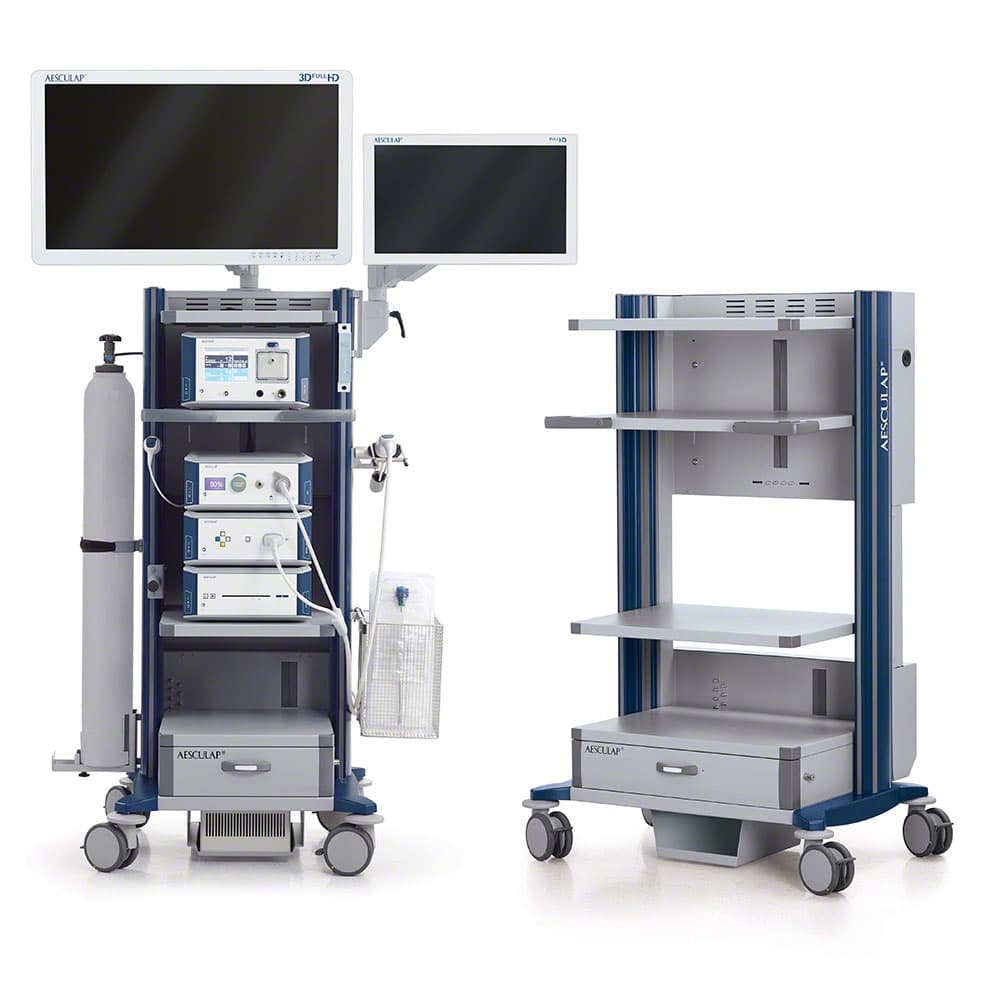

Chariot pour appareils de base PV800 (étroit) et PV810 (large)
- Quatre tableaux, dont trois réglables en hauteur et un tableau avec poignées de poussée d’angle à l’avant
- Tiroir verrouillable
- 4 roulettes doubles antistatiques avec garde-corps, toutes verrouillables, diamètre 125 mm
- Chemins de câbles intégrés dans les colonnes
- Double paroi arrière verrouillable en haut et en bas avec deux blocs multiprises chacun avec six fiches pour appareils à froid
- Paroi arrière supérieure avec sortie de câble intégrée de chaque côté
- Prise de courant
- Interrupteur principal latéral
Chariot pour appareils de base PV800 (étroit)
- Chariot d’équipement : 703 mm x 1506 mm x 663 mm (LxHxP)
- Tableau d’espace utilitaire : 450 mm x 485 mm (LxP)
- Connexions POAG : 8 connexions de conducteur d’équipotentialité
PV810 Chariot pour appareils de base (large)
- Chariot d’équipement : 942 mm x 1506 mm x 663 mm (LxHxP)
- Tableau d’espace utilitaire : 690 mm x 485 mm (LxP)
- Connexions POAG : 12 connexions de conducteur d’équipotentialité
